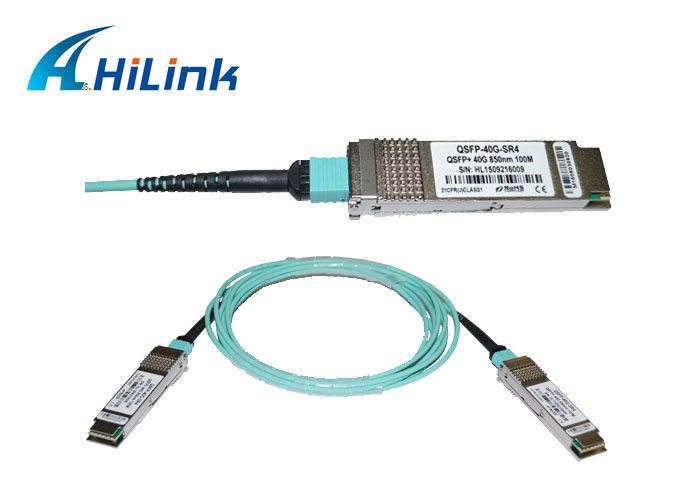

Multimode 850nm QSFP 40G SR4 QSFP+ optical Transceiver
Hilink QSFP+ can reach data rates up to 40.5Gbps by four channels of data in one Pluggable transceiver. Each channel can transfer data at 10Gbps and supports in total 40Gbps. This type of transceiver provides higher density and will reduce the cost of your network system. Opticonnect offers the following QSFP+ products:
Features
4 independent full-duplex channels
Up to 11.2Gbps data rate per channel
MTP/MPO optical connector
QSFP MSA compliant
Digital diagnostic capabilities
Capable of over 100m transmission on OM3 multi-mode ribbon fiber
CML compatible electrical I/O
Single +3.3V power supply
Operating case temperature: 0~70C
XLPPI electric interface (with 1.5W Max power)
RoHS-6 compliant
Specification:
| P/N | HL-QSFP-40GE-SR4 |
| Datarate | 40G/ps |
| Distance | 150M |
| Wavelenth | 850nm |
| Media | MMF |
| DDM/DOM | YES |
| Connector | MPO |
| Application | 40G Ethernet/ 40G Infiniband |
| Operating Temperature | 0℃~ +70℃ |
| Voltage Supply | 3.3V |
| Compatible Brand | CISCO, Juniper,HP |
Application
Rack to rack
Data Center
Infiniband QDR, DDR and SDR
40G Ethernet
Hilink Competitive advantage:
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. stock available,Fast delivery
Our services
1.OEM, ODM are welcome.
You can use your own brand or ours. If you use our brand, our professional design team will help you design the packing, such as the case shape, logo and carton. Our research team will develope the new design according to your requirement
2.Free sample will be provided.
Usually, we make free samples for you, while you afford shipping charge of samples. But when the sample need new mold, you will afford the mold charge. And after we make a deal, the sample fee will be returned to you.
3.Welcome to visit.
When you come to our company visIt us, we will arrange car for picking up and help you book hotel. If you want to visit the other companys, our colleague will accompany you.
4.After-service.
A. In production and after delivery, we will check on time and tell your goods situation.
B. When the goods reached and using in device, for any quality questions, or issues, please feel free to contact us, we can provide the solutions for you.
